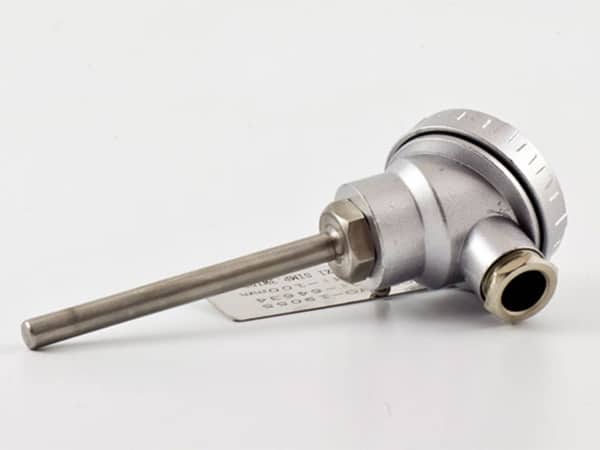

Temperature probe Pt100

The temperature probe is a device resulting from the combination of several components:

One or more temperature SENSORS.
A special PROBE PROTECTION built based on the intended purpose of the device.

Its function is to detect a given temperature measurement and convert it into an electrical signal to ensure clear, immediate readings of the values.

The 3-wire coiled Pt100 temperature probe is designed to use a temperature-dependent electrical resistance thermometer: the Pt100 resistor used for this product increases with the temperature present, satisfying the most demanding industrial needs.

These resistance thermometers are located in the connection head. If the sensor inside the probe detects an increase in temperature, then it will also increase its resistance value. Pt100 thermoresistors are mainly used for a temperature range of -200C° to +400C°.

The resistors used for this product can be classified as wire-wound, particularly suitable for responding to low and medium temperatures.

If you are looking for a temperature probe with these features Ecometeo Italy and its sales team is ready to accommodate your requests.

TECHNICAL DATA SHEET

REQUEST FURTHER INFORMATION

DESCRIPTION

DEVICE

APPLICATIONS

MAIN CHARACTERISTICS

The device

Temperature probe with normalized DIN head type MINI (DIN head also available upon request).
Standard model with Pt100 3-wire sensor
Special implementations with other sensor types available on request.

Models available

50mm
100mm
200mm
300mm
400mm
Other sizes are also available upon request.

—

Further information

Sensor: platinum resistance thermometer type Pt100 class B-DIN.
Connection head: DIN-MINI made of cast aluminum with epoxy paint.
Operating range: -200 + 400 ° C
Electrical connections: on 3-wire terminal block and cable gland connection 1/2 “
Stem: Ø 9xL.200mm. AISI 316 stainless steel

How to purchase the device?

Thermal probes are industrial measuring instruments suitable for detecting precision values in industrial processes, even hazardous and corrosive. Using high-quality materials and state-of-the-art construction techniques, the Ecometeo Italia team offers durable and reliable solutions for professional manufacturing purposes.

To acquire your 3-wire Pt100 temperature probes please fill in the form below by sending us your request or contact us to address any concerns.
